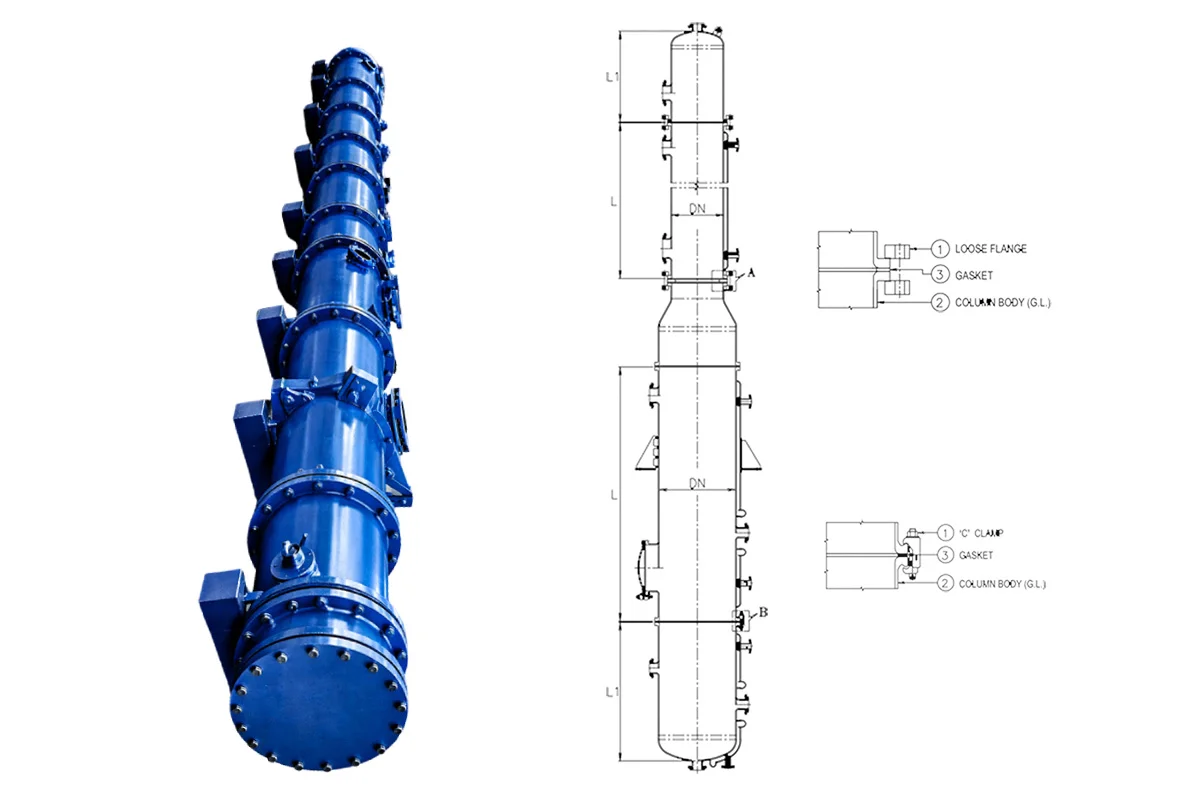

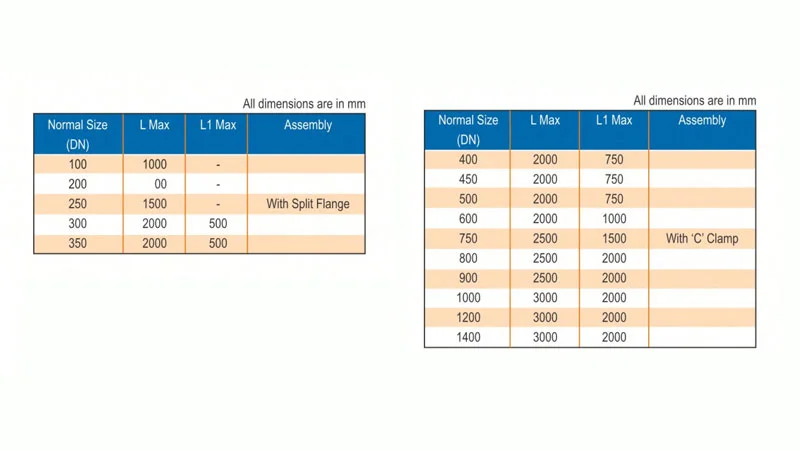

The construction is designed and equipped for the required application and specific process, up to and including DN600 (24”) and in section lengths of up to 4 meters.
The various column sections up to DN400 (16”) are usually connected by loose flanges. Nominal dia-meters of 500 (20”) and 600 (24”) require the use of profile rings and pipe clamps. If the customer so desires, the supply includes internals such as supporting rings, perforated plates, inlet pipes, flow distributors and the like.
Comprehensive internal testing to DIN, ISO and factory standards, company-specific regulations
The development and setting up of complex process equipment call for a great deal of planning and advice. You can rely on Glasskem as a competent partner when it comes to operationally safe and economic incorporation of reliable units and columns into a production system. Our expertise is available not only for the process of making plant items but right through the tender and design stages, project work, installation and after-care.
We offer our columns in different enamel qualities, which vary in specification, coat application or other special operating conditions.
At Glasskem Equipment, our Glass Lined Lab Reactors are engineered for precision, safety, and reliability in laboratory-scale operations. Designed to meet the exacting needs of R&D, quality control, pilot plants, and small-scale production, these reactors ensure optimal performance across industries such as pharmaceuticals, chemicals, and petrochemicals.
At PFG Glasskem, our glass-lined plate heat exchangers are engineered for superior performance in condensing, cooling, and other critical processes across industries such as chemicals, pesticides, pharmaceuticals, and light manufacturing.

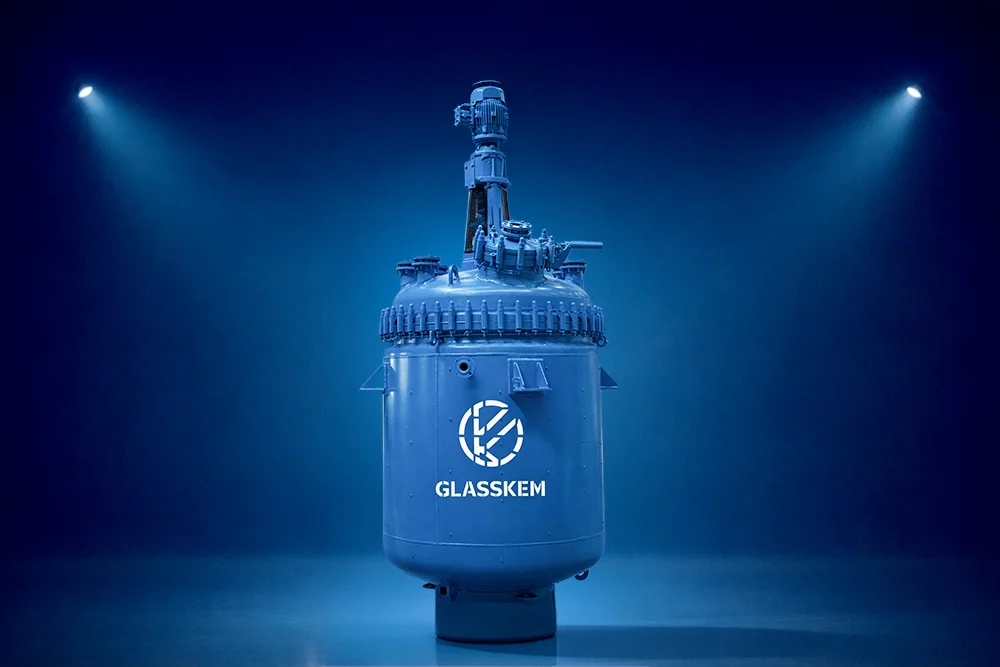

The MS AE Glasslined Reactor combines high-quality materials with corrosion-resistant design, making it a reliable choice for diverse applications such as chemical processing, pharmaceutical manufacturing, food and beverage production, and water treatment.
