To handle the most demanding liquid storage applications, our horizontal storage tanks are lined with GK Sigma Blue glass, a highly versatile and durable coating. This glass lining is ideal for caustic chemicals, high-purity pharmaceutical products, bromine, and other corrosive materials. Because it remains stable across the full pH spectrum, it provides complete and long-term protection against corrosion, ensuring that both the tank and the stored product remain safe. Our receiver tanks are engineered for strength and reliability. They are built to withstand significant internal pressure and are available in a wide range of capacities—from compact units to large-volume tanks—so you can choose the size that best suits your operational needs.

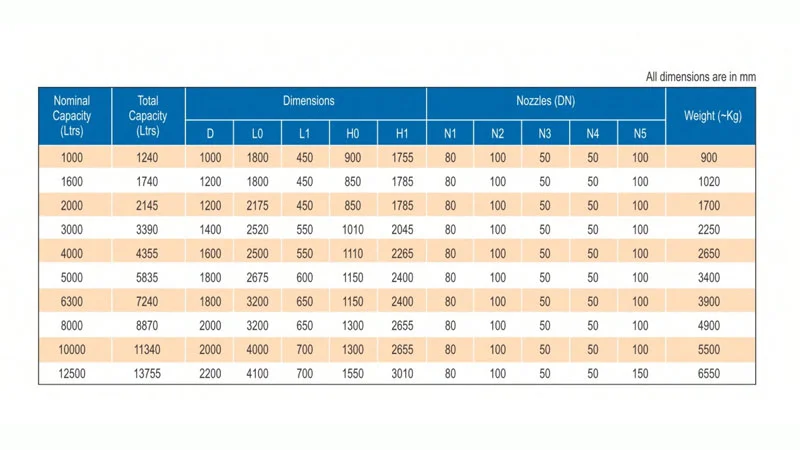

Each tank is manufactured as a single-piece horizontal unit, following the dimensional guidelines of DIN 28018 and DIN 28019. Standard sizes are provided, but we also offer custom-built tanks based on specific client requirements, subject to feasibility.
If your application requires enhanced temperature or pressure handling, we can also design tanks that meet those higher operating conditions.
Special configurations for higher temperature and pressure applications can be supplied on request.
The tanks come with strong, reliable split flanges drilled as per PN10 / ANSI B16.5 150# standards.
Other drilling standards can be provided depending on your process requirements.
Each horizontal tank is mounted on sturdy saddles, ensuring stability and proper load distribution during operation.
Every tank is supplied with:
These accessories ensure safe operation, secure sealing, and easy maintenance.
To enhance usability and monitoring, the following add-ons can be included:
A circular manhole is supplied at the top of the cylindrical part, 500 NB
The Glasskem Glass Lined Vertical Storage Tank is designed to deliver maximum reliability and durability for industries handling corrosive or high-purity materials. Built in compliance with DIN 28019 standards, these tanks ensure safe storage and consistent performance under demanding conditions.
Experience unparalleled reliability and performance with our MS CE Glass Lined Reactor, designed to meet the demanding needs of chemical processes. Its high-strength steel construction and durable glass lining provide reliable corrosion resistance.
Engineered for demanding applications involving high-temperature, high-pressure, and corrosive reactions, the SS AE Glasslined Reactor is a high-performance solution. Constructed from stainless steel and protected by a robust glass lining.
