Our Stainless Steel Glass Lined AE Type Reactors are built for industries that demand the highest level of purity, performance, and reliability. Designed especially for sectors where carbon steel is not acceptable such as pharmaceuticals, fine chemicals, specialty chemicals, and high-purity applications, these reactors deliver consistent results with superior corrosion resistance and durability.

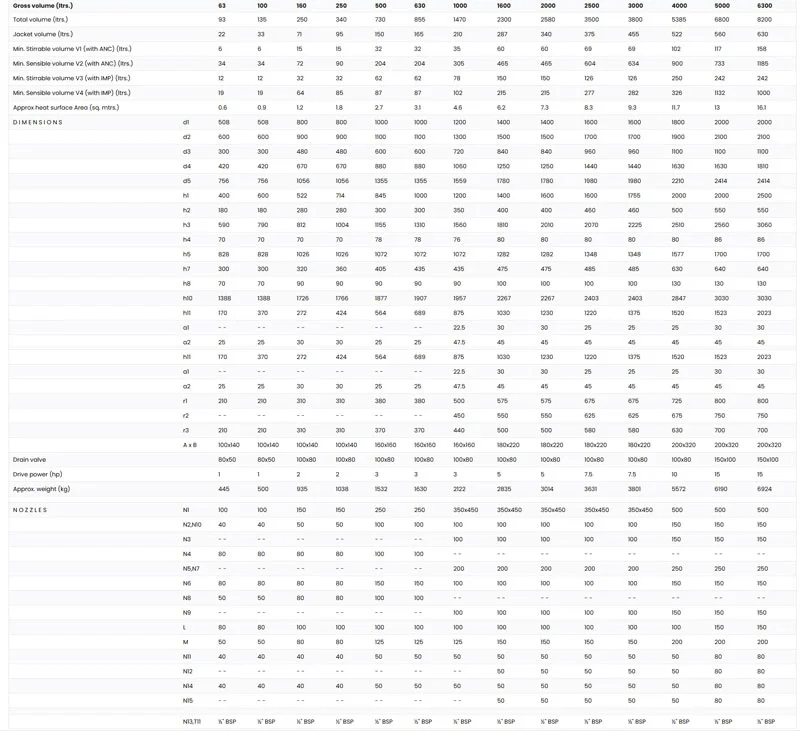

Built with a two-part construction and engineered as per DIN 28136 standards, each reactor is crafted to international specifications to ensure long-term strength, smooth performance, and complete safety. The modular design also allows multiple customizations depending on your plant requirements, mixing needs, and operational conditions.
These reactors feature shiny stainless-steel exteriors, easy-to-clean surfaces, optional in-line motor or gearbox-driven shafts, and compatibility with cryogenic temperature operations, making them a dependable solution for demanding industrial environments.
The SS Glass-Lined AE Reactor combines the hygienic benefits of stainless steel construction with the chemical resistance of PFG Glasskem Pharma Glass. Fully compliant with DIN standards, this reactor is ideal for pharmaceutical, biotech, and clean-processing applications requiring the highest purity and corrosion protection.
Includes:
Available stainless steel supports:
Jacket connections with & without circulating nozzles
DN100 sight glass as per DIN 28121
Glass-lined protection ring included
Flow disturbance
Immersion tube function
Temperature monitoring
Optional damage-detection sensor
The Glasskem Glass Lined Vertical Storage Tank is designed to deliver maximum reliability and durability for industries handling corrosive or high-purity materials. Built in compliance with DIN 28019 standards, these tanks ensure safe storage and consistent performance under demanding conditions.
Glasskem Glass Lined Horizontal Storage Tanks are designed for the safe handling and storage of corrosive, sensitive, and high-purity products. Manufactured with high-grade steel and lined with a durable glass coating, these tanks provide excellent resistance across the full pH range, ensuring maximum protection against chemical attack and product contamination.
At Glasskem Equipment, our MSGL Distillation Columns are designed to deliver exceptional performance in separation, purification, and recovery processes. The advanced glass-lined technology ensures superior corrosion resistance, product purity, and long-term reliability even under the most demanding chemical conditions.
