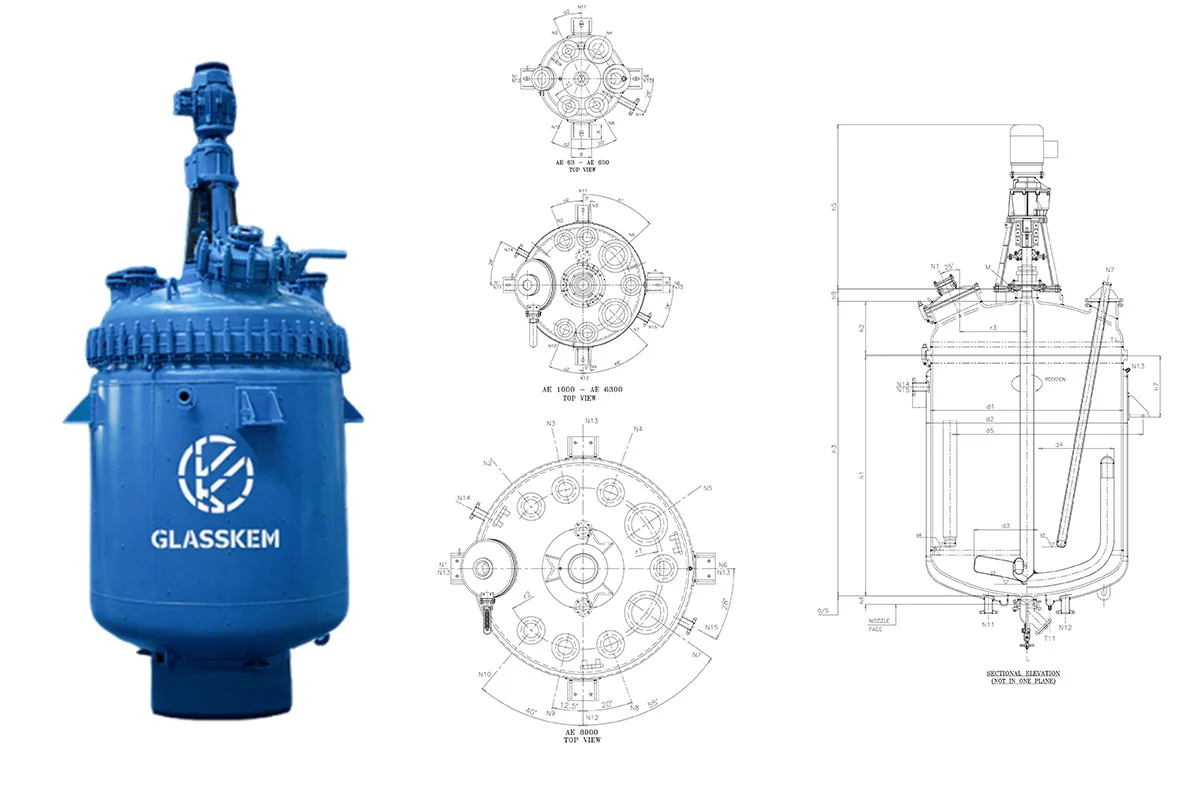

At PFG GlassKem , we design equipment that performs reliably across a wide range of industries. Our AE Type MS Glass-Lined Reactor reflects this approach, it is built for strength, versatility, and long-term use in chemical processing, pharmaceuticals, pesticides, dyes, biotechnology, and food production.
The AE Type reactor can be configured in multiple ways to match specific process requirements. It is equipped with an in-line motor or a gearbox-driven shaft, giving the system the flexibility to handle different mixing and reaction needs.
To ensure smooth and efficient operation, the reactor can be fitted with an impeller agitator, anchor agitator, and baffles, along with sturdy leg supports for stability. The main cover is securely clamped to the base, creating a safe and well-sealed structure that supports consistent performance.
Some of the key advantages of this reactor include:
An anchor-agitator type reactor is ideally suited for highly viscous or paste-like materials, its anchor- shaped blades sweep the vessel walls and ensure thorough mixing, uniform heat transfer, and prevention of wall buildup even for thick, high-viscosity batches.
Built to meet international specifications, the AE Type Glass-Lined Reactor offers a dependable and safe solution for demanding industrial processes. It combines strong mechanical design with the protective benefits of glass lining, making it suitable for both corrosive materials and high-purity applications.
The MS Glass-Lined AE Reactor is designed according to DIN 28136-3, offering reliable performance for chemical and pharmaceutical processes. Constructed with a mild steel body and lined with PFG Glasskem Glass, it provides strong mechanical strength combined with excellent corrosion resistance.

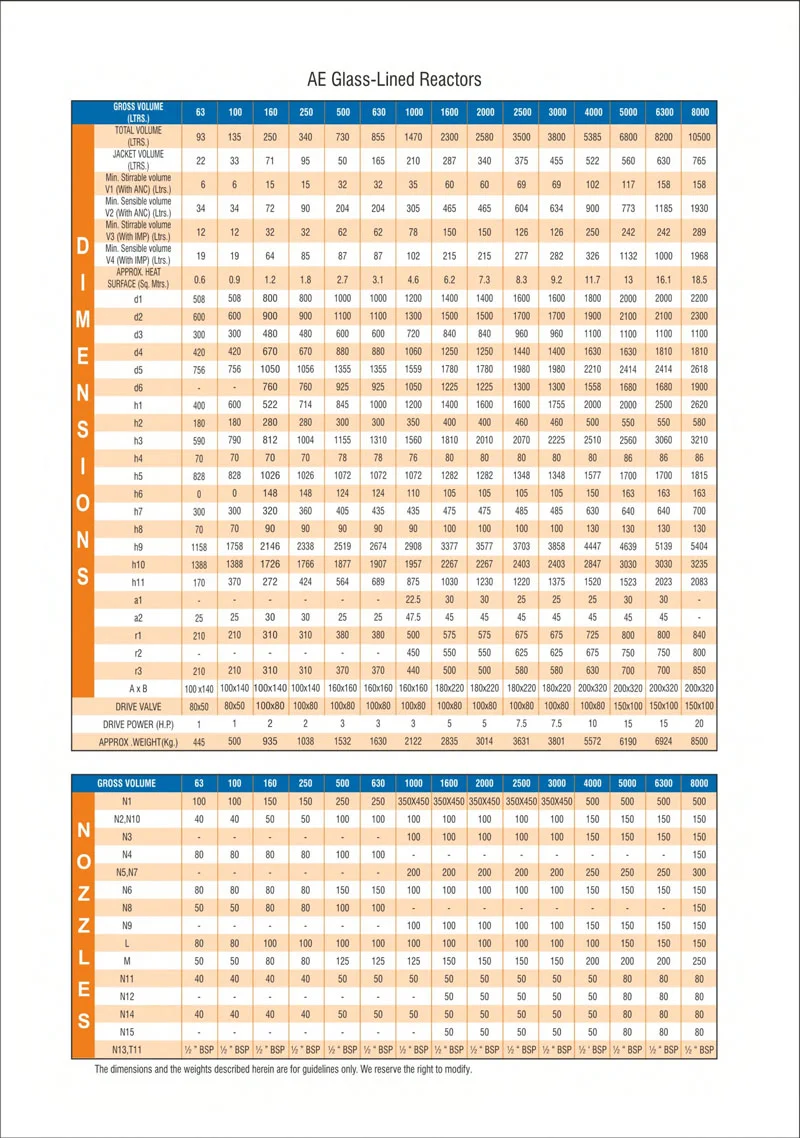

The AE Reactor series consists of:
Jacket connections with & without circulating nozzles
With DN100 sight glass (DIN 28121, Design EC)
TyWith glass-lined protection ring
Available configurations:
Applies to AE 250 and above
Tubular legs for AE 1000
Flow disturbance function
Immersion tube functionality
Integrated temperature measurement
Optional glass-damage sensor
Experience unparalleled reliability and performance with our MS CE Glass Lined Reactor, designed to meet the demanding needs of chemical processes. Its high-strength steel construction and durable glass lining provide reliable corrosion resistance.
Engineered for demanding applications involving high-temperature, high-pressure, and corrosive reactions, the SS AE Glasslined Reactor is a high-performance solution. Constructed from stainless steel and protected by a robust glass lining.

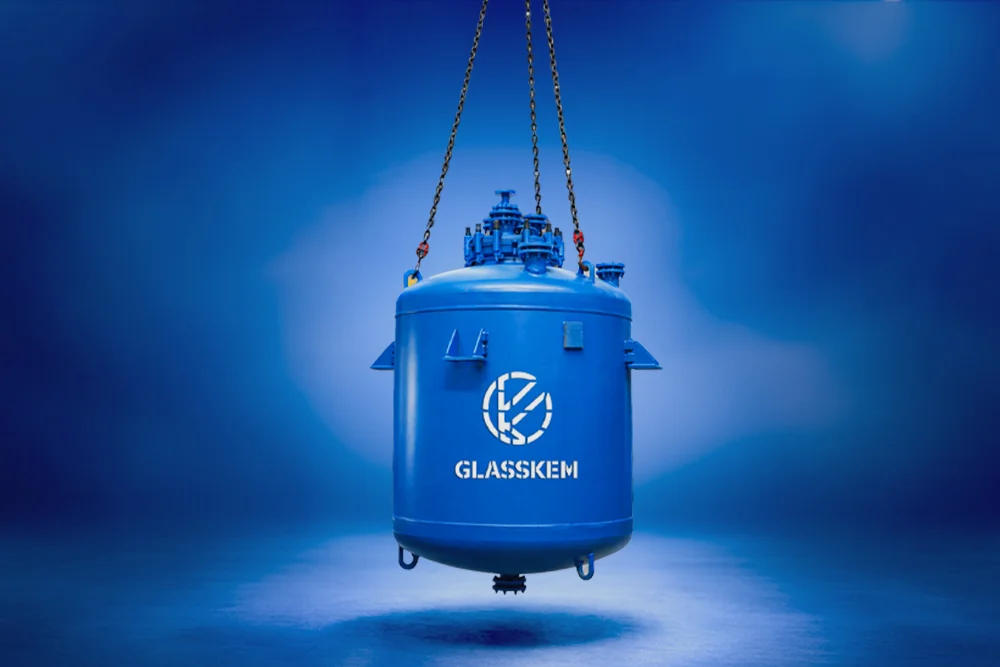

The Glasskem Glass Lined Vertical Storage Tank is designed to deliver maximum reliability and durability for industries handling corrosive or high-purity materials. Built in compliance with DIN 28019 standards, these tanks ensure safe storage and consistent performance under demanding conditions.
