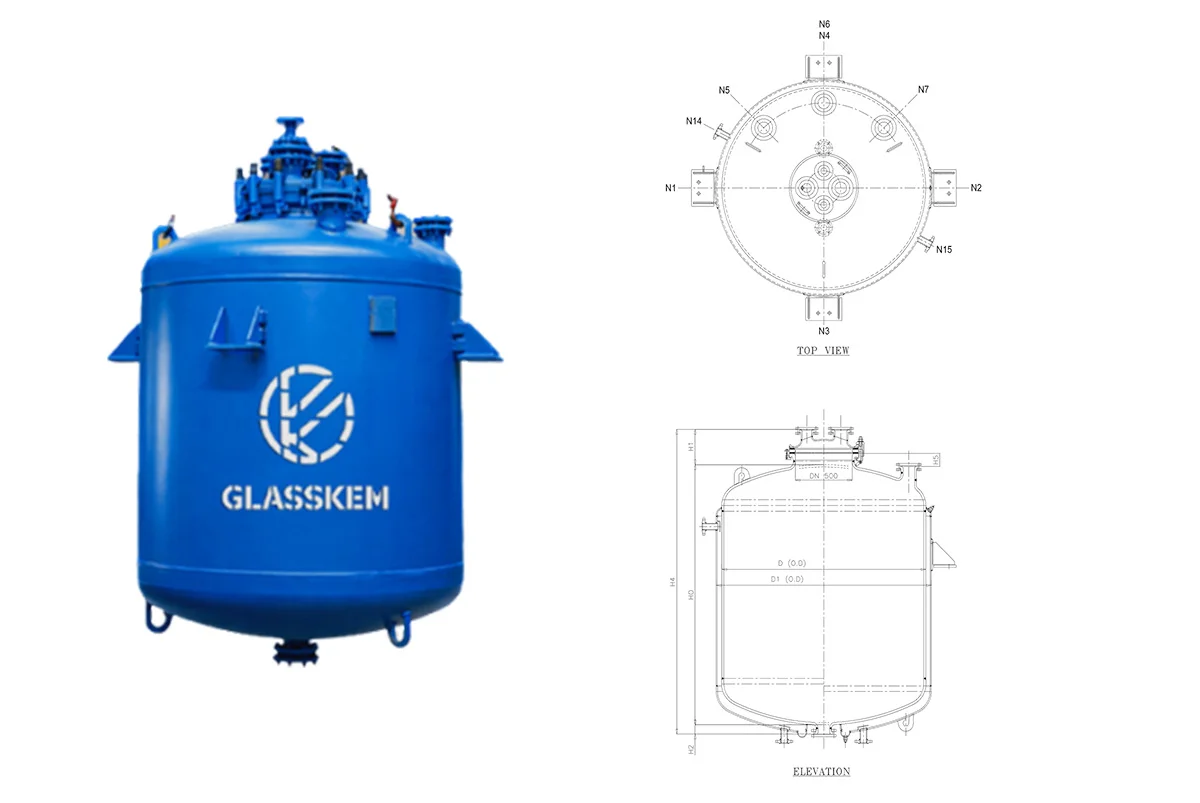

The Glasskem Glass Lined Vertical Storage The Glasskem Glass-Lined Vertical Storage Tank is designed for industries that require a safe, durable, and corrosion-resistant solution for storing sensitive materials. Built to meet DIN 28019 standards, each tank is engineered with precision to deliver long service life, reliable performance, and consistent protection against harsh chemicals and demanding operating conditions.
Glasskem tanks are built to handle materials that conventional metal tanks cannot. The glass lining creates a completely non-reactive barrier, ensuring that the stored product remains pure and uncontaminated. Because the lining resists corrosion, chemical attack, and temperature variation, our tanks offer a significantly longer lifespan and lower maintenance cost compared to standard steel tanks.

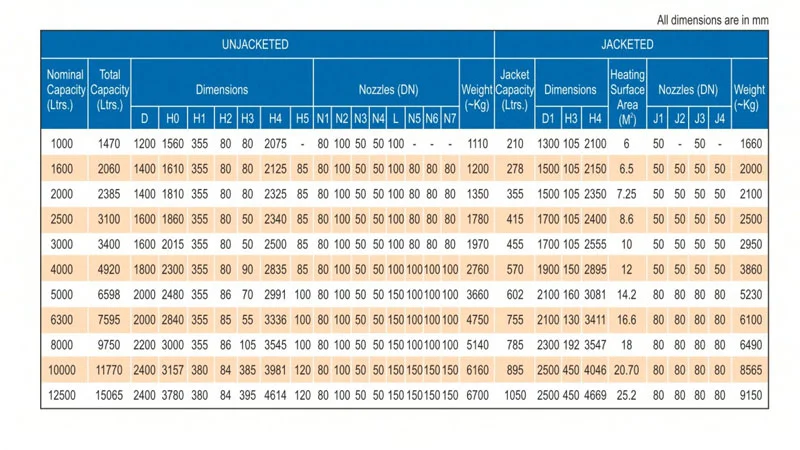

Our vertical storage tanks are manufactured as a single, robust piece to ensure strength and structural integrity. Standard dimensions follow DIN 28019, but we also offer custom-built tanks tailored to the exact size and specifications you need.
For processes that require additional temperature control, jacketed options can be provided with either:
These enhancements allow smooth heating or cooling depending on your application.
Each tank comes with durable split-flange connections drilled according to PN10 / ANSI B16.5 150# standards.
If your process requires alternative drilling specifications, those can be provided on request.
We also offer additional accessories to enhance tank functionality:
These options support processes that require precise temperature monitoring and efficient product discharge.
A circular manhole is supplied in the upper spherically dished end, 500 NB
We design tanks that can safely operate under a wide range of industrial conditions. Higher-pressure or high-temperature versions can also be manufactured based on project needs.
This makes the tank suitable for chemical, pharmaceutical, agro-chemical, and other process applications requiring stable storage conditions.
Our tanks are equipped with strong support legs as standard. Depending on your installation setup, we can also provide:
These options allow flexibility in layout and structural design.
Every Glasskem storage tank is supplied with:
These components ensure reliable sealing, easy maintenance, and safe operation.
Glasskem Glass Lined Horizontal Storage Tanks are designed for the safe handling and storage of corrosive, sensitive, and high-purity products. Manufactured with high-grade steel and lined with a durable glass coating, these tanks provide excellent resistance across the full pH range, ensuring maximum protection against chemical attack and product contamination.
At Glasskem Equipment, our MSGL Distillation Columns are designed to deliver exceptional performance in separation, purification, and recovery processes. The advanced glass-lined technology ensures superior corrosion resistance, product purity, and long-term reliability even under the most demanding chemical conditions.
At Glasskem Equipment, our Glass Lined Lab Reactors are engineered for precision, safety, and reliability in laboratory-scale operations. Designed to meet the exacting needs of R&D, quality control, pilot plants, and small-scale production, these reactors ensure optimal performance across industries such as pharmaceuticals, chemicals, and petrochemicals.
