Flange Elbow 90

At PFG Glasskem, we design and manufacture glass-lined 90° flanged elbows that help guide fluid smoothly around pipeline bends. These elbows are built with a sturdy steel body and a high-quality glass lining, giving them excellent corrosion resistance and long-lasting durability, even when used with aggressive chemicals or sensitive materials.

The smooth glass interior ensures a clean, uninterrupted flow through the bend, preventing buildup and reducing the risk of contamination. Designed to fit easily into new and existing piping systems, our 90° elbows are a reliable choice for chemical plants, pharmaceutical facilities, food processing units, and other industries that depend on safe and stable fluid movement.

Technical Highlights
  • Temperature range: -25°C to 200°C
  • Max pressure: Up to 6 bar
  • Glass lining thickness: 1.0 mm to 2.2 mm
  • Strong steel construction with corrosion-resistant glass lining
  • Smooth, non-porous interior for clean and consistent flow
  • Ideal for safe and reliable 90° direction changes in pipelines
  • Suitable for chemical, pharma, food, and specialty applications
  • Available in standard and customized sizes
  • Low-maintenance design with long service life

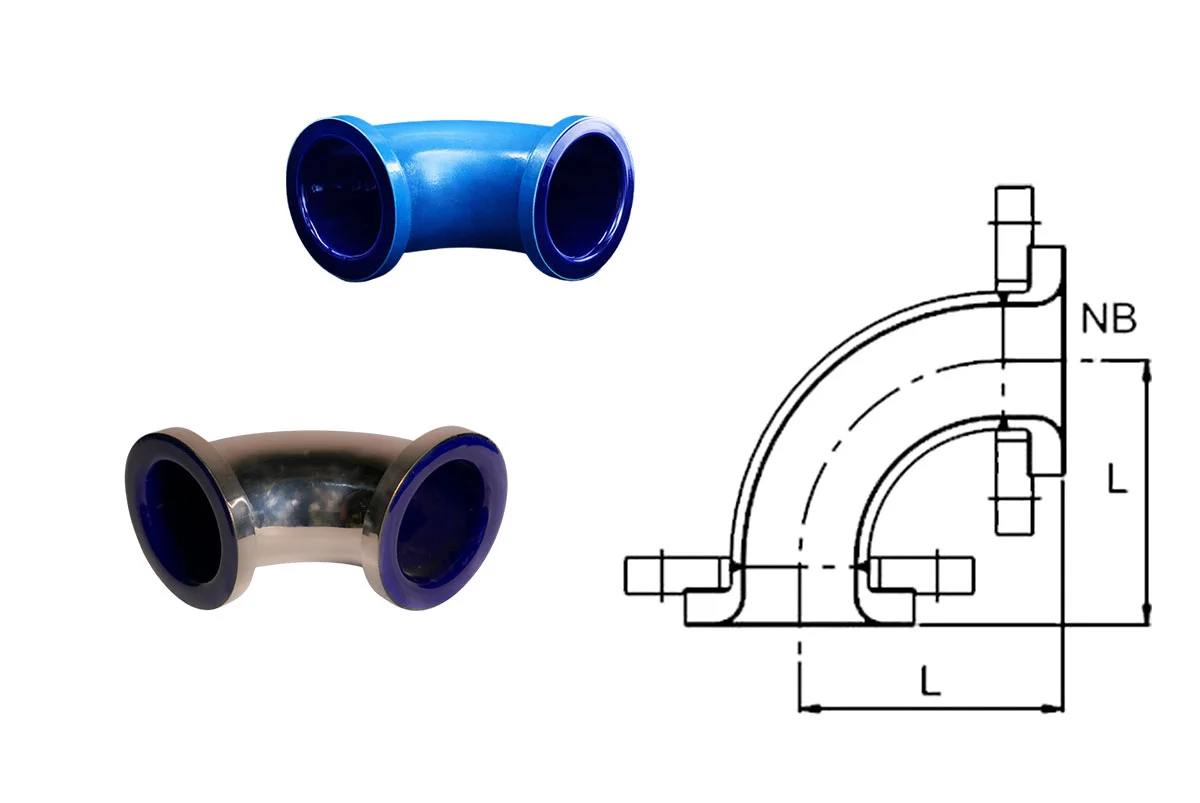

Flange Elbow 90 - 2D Structure - Glasskem
