FLANGED TEE

At PFG Glasskem, we manufacture glass-lined flanged tees that help your piping system split and direct flow safely and efficiently. Each tee is built with a strong steel body and a durable glass lining, giving it excellent resistance to corrosion and chemical attack. This makes it a reliable choice for systems that handle harsh or high-purity materials.

The smooth glass-lined interior keeps the flow clean and contamination-free while also making the component easy to maintain. Whether used in chemical production, pharmaceuticals, food processing, or other industrial applications, our flanged tees provide steady performance and long service life.

Technical Highlights
  • Temperature range: -25°C to 200°C
  • Max pressure: Up to 6 bar
  • Glass lining thickness: 1.0 mm to 2.2 mm
  • Strong steel construction with corrosion-resistant glass lining
  • Smooth internal surface for clean and consistent flow
  • Designed for reliable branching in process pipelines
  • Suitable for chemical, pharma, food, and general industrial applications
  • Available in multiple sizes with custom options
  • Low maintenance and long-lasting performance
Operating Conditions

As per ASME Code

  • Admissible operating pressure in the Pipes and Fittings -1/6 bar
  • Admissible operation temperature -25°/+200°C

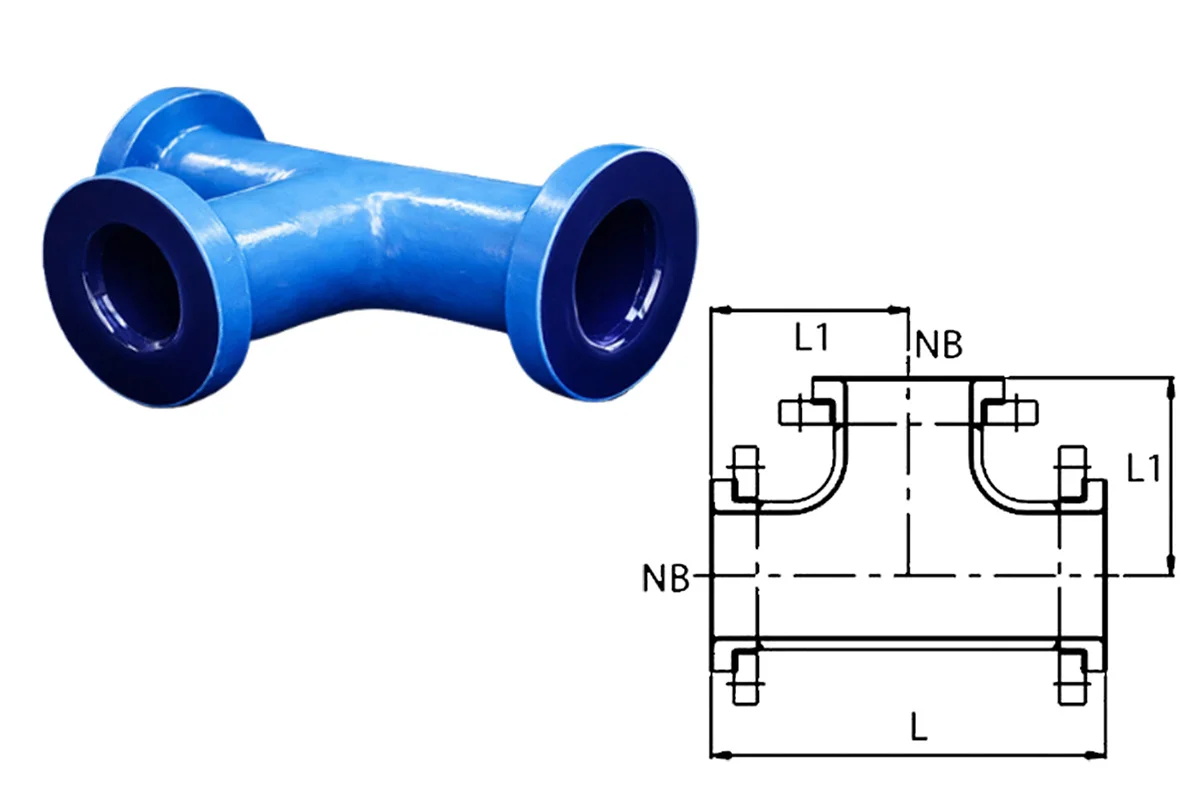

Flanged Tee 2D Structure - Glasskem
