Glass lined Anchor Agitator - Glasskem

GLASS LINED ANCHOR AGITATOR

At PFG Glasskem we manufacture reliable and high-performance glass-lined anchor agitators designed for industries that require gentle yet highly efficient mixing. Built with premium glass lining, our anchor agitators offer excellent resistance to corrosion, abrasion, and chemical wear, making them ideal for chemical, pharmaceutical, food, and specialty manufacturing processes.

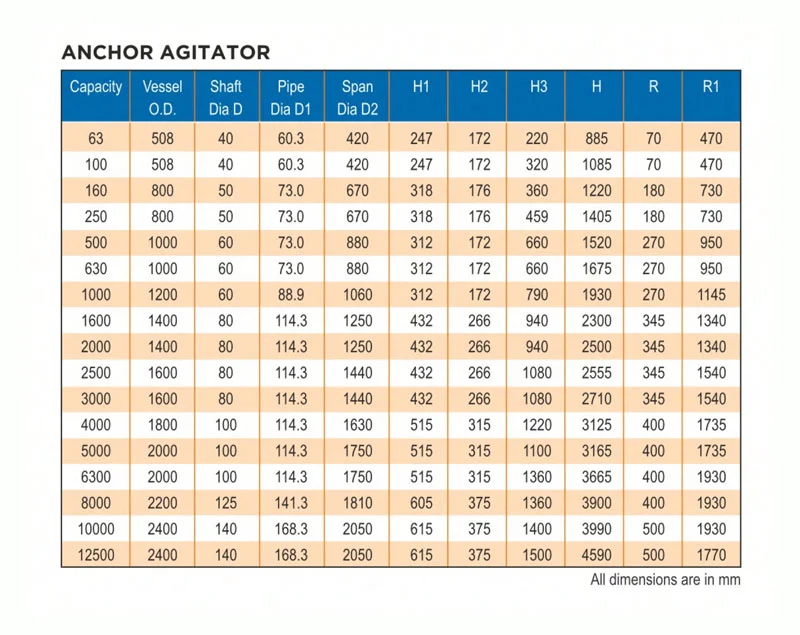

Our anchor agitators are available in a wide range of capacities, from 63 L to 8 KL, and can be customized to suit your specific mixing, viscosity, and process requirements. Whether you need a standard design or a fully tailored solution, our team ensures you receive an agitator that delivers consistent, uniform mixing and long-lasting operational performance.

Key Highlights
  • Capacity range: 63 L to 8 KL
  • Designed for uniform and efficient mixing in high-viscosity applications
  • Premium glass lining for long-term corrosion and chemical resistance
  • Suitable for chemical, pharma, food, and specialty processes
  • Smooth surface finish ensures easy cleaning and reduced product contamination
  • Custom designs available based on process needs
  • Engineered for durability, stability, and continuous operation

This agitator design primarily generates a tangential flow with minimal shearing forces, making it ideal for gentle yet effective mixing. It is especially suitable for thermal transfer processes and for handling non-Newtonian fluids that require controlled, low-shear agitation. The system operates with high torque, ensuring reliable performance even under demanding process conditions.

Key Features
  • Produces predominantly tangential flow with low shear
  • Ideal for thermal transfer applications
  • Well-suited for mixing non-Newtonian fluids
  • High torque capability for robust operation

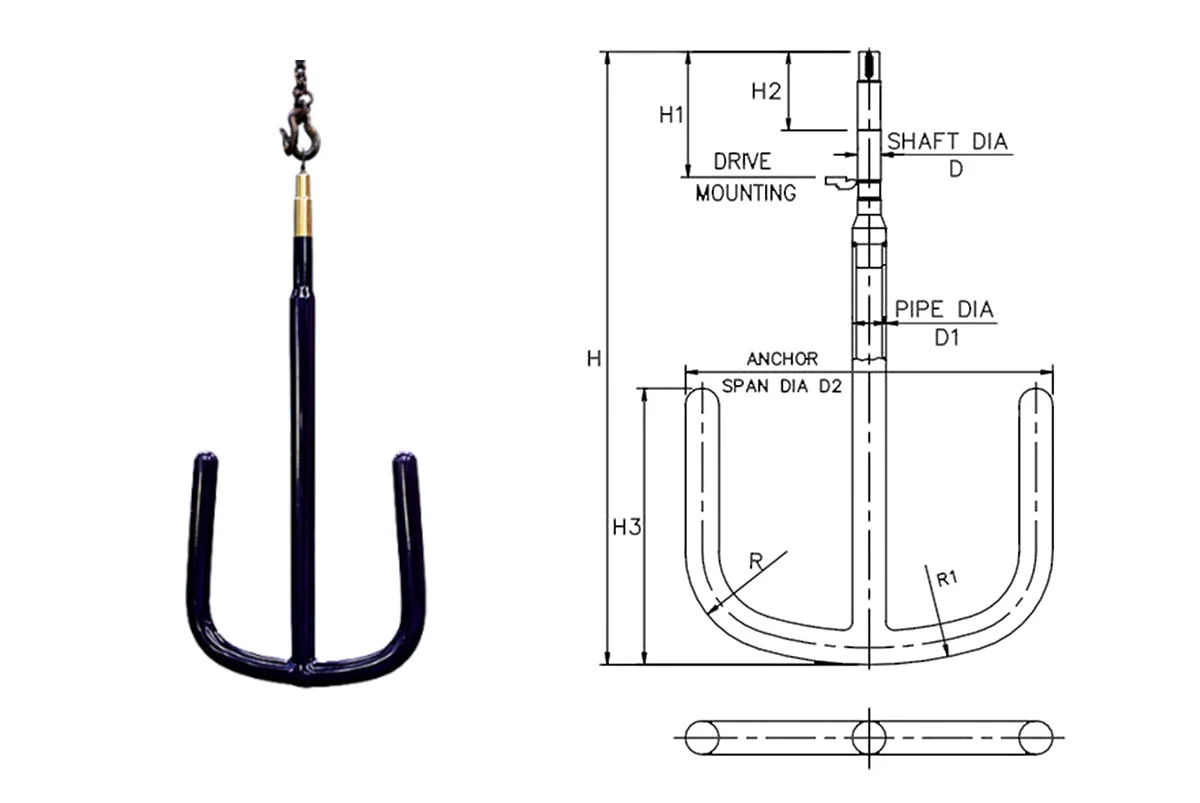

Anchor Agitator 2D Structure - Glasskem
