MSGL EQUAL TEE

At PFG Glasskem, we produce MSGL Equal Tees designed to help your piping system divide and direct flow safely and efficiently. Made from strong mild steel and lined with a high-quality glass coating, these tees offer excellent resistance to corrosion and aggressive chemicals. This makes them a reliable choice for chemical, pharmaceutical, food, and other process industries that need clean and safe fluid handling.

The smooth glass-lined interior helps prevent contamination, buildup, and product sticking, ensuring a steady and hygienic flow. These tees are built to handle a wide temperature range and moderate pressure, making them suitable for demanding environments. We offer them in various sizes, and if your process needs a specific configuration, we can customize the design to match your plant requirements.

Technical Highlights
  • Temperature range: -25°C to 200°C
  • Max pressure: Up to 6 bar
  • Glass lining thickness: 1.0 mm to 2.2 mm
  • Durable mild steel body with corrosion-resistant glass lining
  • Smooth internal surface for clean, consistent flow
  • Reliable branching point for process pipelines
  • Suitable for chemical, pharma, food, and industrial applications
  • Available in multiple sizes with custom options
  • Strong, dependable, and low-maintenance

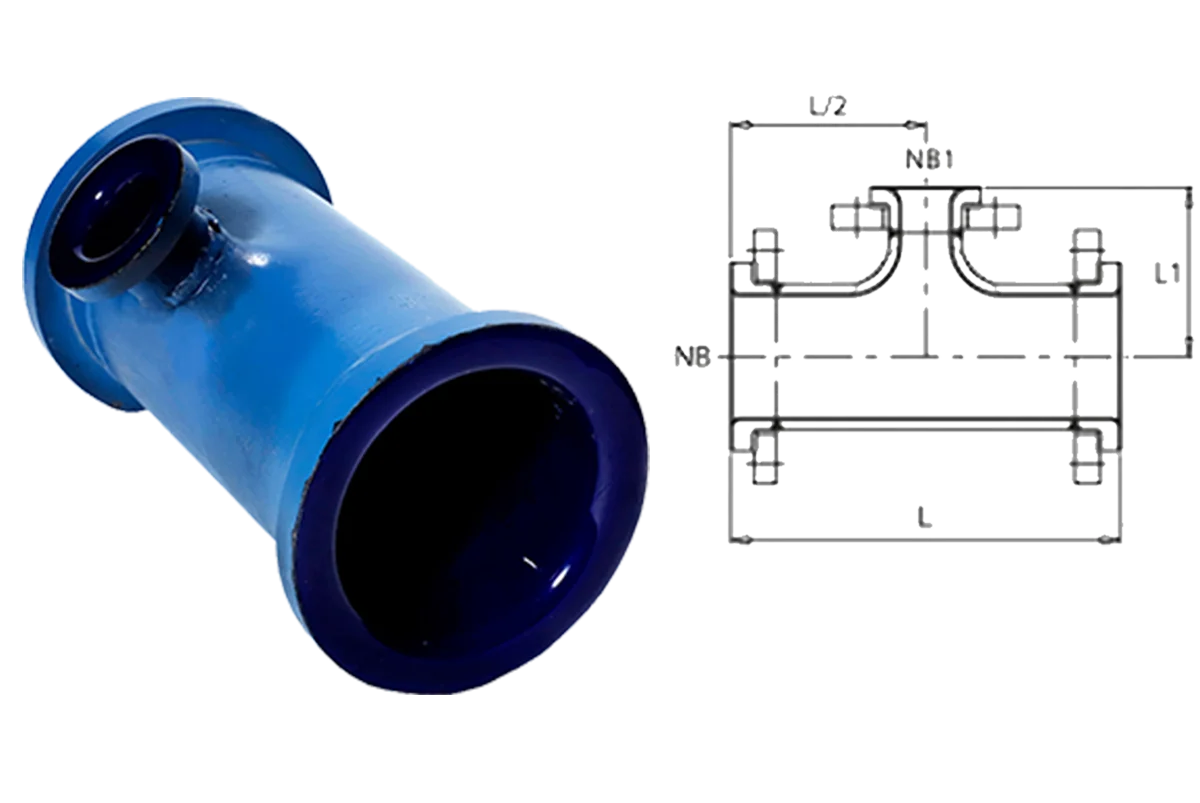

MSGL Unequal Tee 2d structure - Glasskem
